£189

Price includes 1st class signed for delivery by Royal Mail

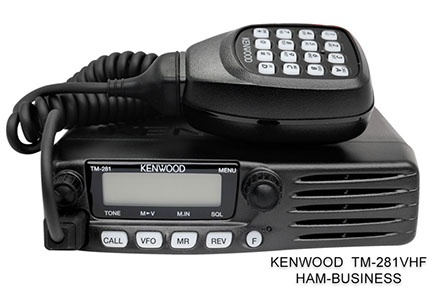

TM-281A

VHF

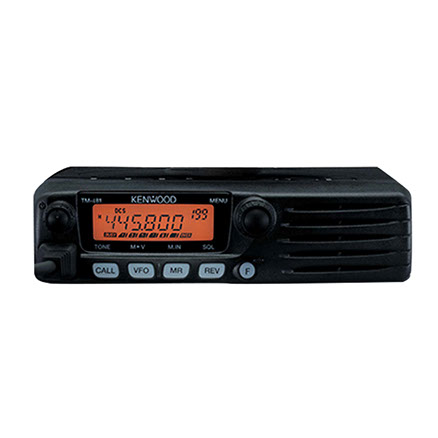

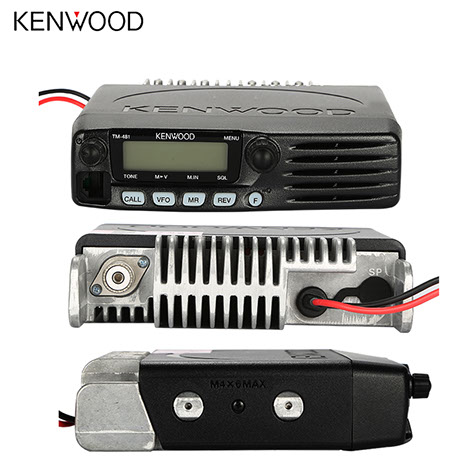

TM-481A

UHF

The Kenwood TM-281A and 481A tranceivers are reliable compact and simple to use radios that can be user programmed by entering a frequency, moving up and down from that frequency with the knob and then you can store the channel into memory - the way it's been done for 40 Yrs, without the now common faffing around with lots of menu items and multiple button pushes. All the major functions of the radio are simple, and you only delve into menus to change things like CTCSS tones, or frequency steps. The front facing speaker has bags of loud, clear audio, so handy for installation in vans as well as quieter cars. They also make good radios to use at home or in the office, connected to a 13.8V standard power supply.

MORE DUE SOON

TM-281A/TM-481A Specifications



 GENERAL

Antenna Impedance 50 ohms

Current Drain Receive Less than 1 A

Current Drain Transmit Less than 14 A

Dimensions (W x H x D) 6.3 x 1.69 x 4.69 in. (160 x 43 x 126 mm)

Weight (approx.) 2.6 lbs. (1.2 kg)

Frequency Range TX/RX: 136 - 174MHZ (TM-281A) or 400-470MHz (TM-481A)

Ground Negative

Microphone Impedance 600 ohms

Frequency Tolerance ± 2.5 PPM -20°C to 60°C

Mode F3E (FM)

Operating Temperature Range -20°C to 60°C

Power Requirement 13.8V DC (±15%)

 RECEIVER

Audio Output Power More than 2W (8 ohms, 5% distortion)

Circuitry Double conversion superheterodyne

Intermediate Frequency 1st IF 49.95 MHz

Intermediate Frequency 2nd IF 450 kHz

Selectivity -6 dB More than 12 kHz (Narrow 10 kHz)

Selectivity -60 dB Less than 30 kHz (Narrow 24 kHz)

Sensitivity (12dB SINAD) Less than 0.18µV

Squelch Sensitivity Less than 0.10µV

 TRANSMITTER

Frequency Tolerance Within ±10 ppm

Maximum Frequency Deviation ±5 kHz

Modulation Reactance modulation

Modulation Distortion Less than 3% (300 Hz ~ 3 kHz)

RF Output Power HI 65 W (TM-281A) 45W (TM-481A)

RF Output Power LO 25 W
