£169

Price includes Tracked and signed for delivery by Parcelforce 48

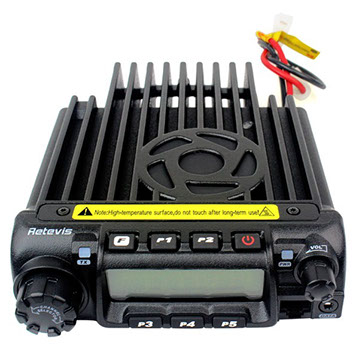

The portable low band (66-88MHz) radio has been really popular - we underestimated the interest in low band, and we've discovered Retevis produce a low band version of their VHF radio. It's a very familiar radio - being available in UHF versions too, and is very small, so ideal for vehicle mounting. 5 programmable function buttons, volume and a larger channel change mean that we can if you wish program the radio for you and you have the full UK amateur band up and running immediately - or we can also supply you with a programming kit so you can program them yourself from your computer. Oddly, full programming can also be done from the radio itself, so plenty of options.



It also has power levels up to 60W - so is a very powerful radio - the front panel has a sticker that warns of high temperatures - all these radios use the case as a heat sink - so ideal for the winter!.



The programming software has been upgraded and is now specific to this version - and we will send you a link to it when you buy. We have also programmed the radios with all 16 UK Amateur channels - at 12.5KHz spacing so you will be ready to go straight away.









SPECIFICATION



Model RT-9000D - LOW BAND VERSION

Working temperature -20~+60°C

Rated Voltage 13.8V DC±15%

Output power 60W

Color Black

Dimension(LxWxH) 145(W)x47(H)x190(D)mm

Weight 966g

Single band

Duplex or Simplex Operation

Frequency range  VHF 66-88MHz

Memory Channel 200

CTCSS/DCS function 50 CTCSS / 1024 DCS

Channel spacing 25k(Wide Band)/20k(Middle Band) 12.5k(Narrow Band)

High/Low TX power selectable 60W/25W/10W(VHF)

Channel step 5/6.25/10/12.5/15/20/25/30/50kHz

Scrambler function - 8 Group Scrambler

Wide/Narrow Band Switchable

P1-P5 with programmable functions

Voice pressure /expansion function

Repeater offset shift

Contact book

DTMF/2 tone/5 tone coder

Remote kill/ stun/ activate/ revive

Keypad lock function

0-9 SQL grade setting

1750MHz tone

Reverse frequency

Auto Power off

VOX function

Busy lockout function

Scanning function

COMP function

Monitor function

CTCSS/DCS setting and scanning

Battery voltage display

Channel name display/editing

Emergency alarm

Power saving function

LCD Backlight

English voice prompt

PC software programmable



Technical Specification



Frequency stability ±2.5ppm

Adjacent channel selectivity( w/n) 60dB 12.5kHz /70dB 25kHz

Modulation ( w/n ) 11kØF3E / 16kØF3E

Spurious radiation < -60db

Sensitivity 0.25µV/0.35µV

Intermediate frequency 38.85/46.05MHz

Modulation distortion <5%

FM noise >=40dB 25kHz/>=45kHz 12.5kHz

Audio response -1-+3dB

Audio Distortion <5%

Inter modulation(w/n) >=60dB />=65dB

Spurious rejection >60db
