£189

We bought some of these for a client who wanted a bigger radio than the now normal micro-size ones. We had the Icom IC-V8 for a while then when stocks of these ran out, swapped to the IC-V82 the newer model.



When Icom sold these, they were advertised  as digital compatible, and an extra board could be fitted that enabled digital operation. Our supplier could not supply any of these, so we're selling them as a capable analogue chunky handheld. They're unlocked wide band and we buy them primarily for operation on Marine band - but they'll also work well for any ham radio or business radio use. We have not experimented programming them from a computer, not having a programming cable - so programming has been done from the keypad.



The desk charger is supplied with a two pin American style adaptor for 115-260V operation, so you will need a shaver style adapter to charge the battery.



If you need a sensible priced, bigger radio for ham, marine or business - this could be ideal.



For Marine - you can program the frequencies into channel slots so you can operate via the memories - so channel 16 would be 156.800MHz etc.



Sent out via Royal Mail 1st Class signed for which is included in the price.



Price includes 1st class signed for delivery by Royal Mail

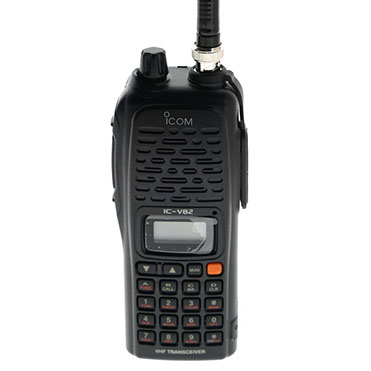

IC-V82

VHF

£95

Specifications



Frequency Coverage Version IC-V82 Tx 136-174 Rx 136-174



Mode F3E, F2D, F7W*

*Optional UT-118 Required

Number of memory Ch. 207 (incl. 6 scan edges and 1 call)

Operating Temp. Range -10°C to +60°C; +14°F to +140°F

Frequency stability ±2.5 ppm (-10°C to 60°C)

Power supply requirement  7.2V DC (6.0-10.3V DC acceptable)

Current drain   (at 7.2V DC)

Tx  High (7W) 2.6A

Rx   Max. audio Standby

Power Save

Antenna impedance 50Ω (BNC)

Dimensions (W×H×D) (Projections not included)

54 × 139 × 37.5 mm;

Weight (approx.) 390g (w/ant. and BP-222N)

Transmitter Output power (at 7.2V DC) 7.0/4.0/0.5W (High/mid/low)

Spurious emissions Less than -60dBc

Max. freq. deviation ±5.0/±2.5 kHz (Wide/narrow)

External Microphone connector 3-conductor 2.5(d)mm (1/10") / 2.2kΩ



Receiver

Receive system Double conversion superheterodyne

Intermediate freq. 46.35 MHz/450 kHz (1st/2nd)

Sensitivity (typical) 0.16µV (typ.; at 12dB SINAD)

Squelch sensitivity 0.11µV (typ.; threshold)

Selectivity More than 55/50dB (wide/narrow)

Intermodulation 65dB (typ.)

Spurious and image rejection

80dB (typ.; VHF)

Audio output power 300mW with an 8Ω load

Ext. speaker connector 3-connector 3.5(d) mm (1/8”) / 8Ω

Ext. Data connector 3-connector 2.5(d) mm (1/10”)

All stated specifications are subject to change without notice or obligation.



Supplied Accessories

Battery pack

Desktop charger

Antenna

Belt clip
