£85

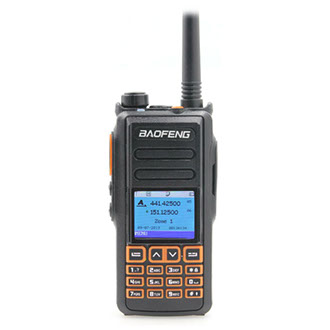

This is the new Baofeng DM-760 DMR radio. Dual Band, DMR Tier 1 and 2.



Just to make sure, we've popped this one on the bench and I can confirm it can transmit and receive proper DMR with a another DMR radio - tested with the Kytera CDR-300UV we had on the bench at the time. GPS is fitted (it was an upgrade on the first batch) and happily synced with the satellites and displays the position. The audio record facility is also fitted.

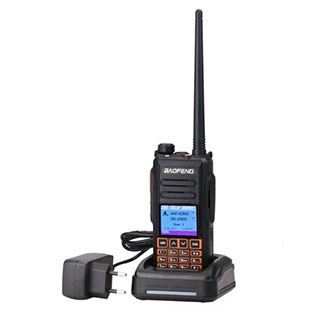

The menu system is quite nice and all the parameters can be done from the keypad which is an improvement on the old ones where you needed a finger nail to prod them. This works fine with my chunky fingers and pads of my fingers! Charger is sturdy and has red/green LED indication of charged/not charged.

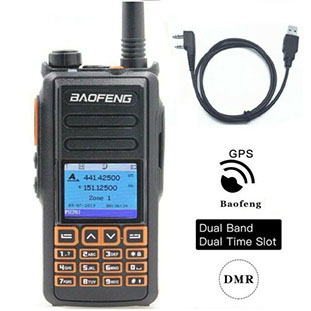

Programming software is on the net, and it comes with a dedicated USB cable - which does NOT need the converter in the USB plug - this is now done in the radio.



Quite an impressive little radio and it feels very similar to the TYT 370's/380s in toughness. Below is the factory description of the spec.







Price includes 1st class signed for delivery by Royal Mail



1. GPS Function: Support longitude & latitude position.

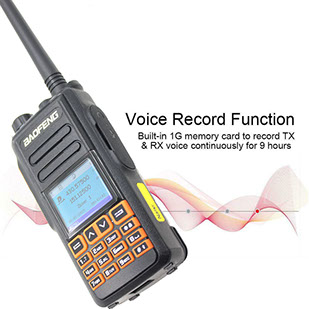

2. Voice Record function: Built-in 1G memory card to record TX & RX voice continuously for 9 hours

3. Larger keyboard button than dm-860 dm-5r dm-1701 dm-1702,so that you can Easy to operate by your finger.

4. Larger full-Colour Led Screen

5. Dual Band VHF 137-174MHz & UHF 400-480MHz

6. SMS fuction: Supports SMS, text editing and draft in 64 characters in English.

7. High sound quality.

8. Manual writing -frequency.

9. High/Low power mode.

10. Larger Capacity Li-ion Battery Equipped with a 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time.

11. More keypad operations Channel names, TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad. Users can also customise the top and side buttons for their favourite functions.





Specification:



Type: Upgrade of DM-1702 Digital Walkie Talkie

Brand: Baofeng

Power Output: 5W

Baofeng DMR Radio: Ham Amateur Two Way Radio

DMR Tier II VFO: Baofeng Tier 2 Digital Walkie Talkie

Frequency Range: Dual band VHF 136-174MHz UHF400-470MHz

Working Time: 18H Talk Range: 3-10km

Standby Time: 48H Storage Channel: 1024

Mototrbo Tier: II compatible

Dimensions: 13.3 x 6.2 x 3.2cm/5.24“ x 2.44" x 1.26"(Antenna Not included)

Battery Capacity: 2200mAh

Text Messages: Yes

Display: Colour LCD display

Record: 9H

Analog & Digital: DMR Tier I & II Radio

SMS: SMS function

Operating Voltage: DC 7.4V

Frequency stability: ±1.0ppm

Dimensions: 136 x 62 x 36mm (not including the antenna)

Operating environment: -30℃-+60℃

Weight: Approach.274g(including the battery and antenna)

Output power: High: 5W Low: 1W

Adjacent channel power: ≤65dB ≤60dB

Output consumption: Analog≤1.6A Digital≤0.9A

Audio response: +1~3dB

Standby current consumption: ≤0.18A

Digital Protocol: ETSI-TS102 361-1,-2,-3

Modulation distortion: ≤5%

Vocoder type: AMBE+2 TM



FM/FM modulation: 16K¢F3E, 25KHz 141K¢F3E, 20KHz 11K¢F3E, 12.5KHz

4FSK/4FSK digital modulation: 12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE

Signal-to-noise(wide/narrow): ≥45dB,25KHz ≥40dB,12.5KHz

Antenna Port Spurious: 9KHz-1GHz: ≤-36dBm 1GHz-12.75GHz: ≤-30dBm

Analog receive sensitivity: -122dBm (12dB SINAD)

Digital receive sensitivity: -122dBm (BER≤5%)

Audio power: 1W

Audio distortion: <10%

Signal imitation: ≥70dB

Audio response: +1~3dB

Receive current: ≤380mA

Selectovity(wide/narrow): ≥62dB/≥58dB

Adjacent channel selectivity: ≥65dB/≥60dB

PM noise: ≥45dB,25KHz / ≥40dB,12.5KHz



Package Included:



1 x BAOFENG DM-170

1 x 2200mAh Li-ion Battery Pack

1 x Charger Unit with AC Adapter

1 x Antenna

1 x Hand Strap

1 x Belt Clip

1 x User Manual
