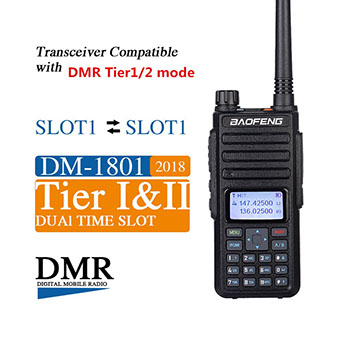

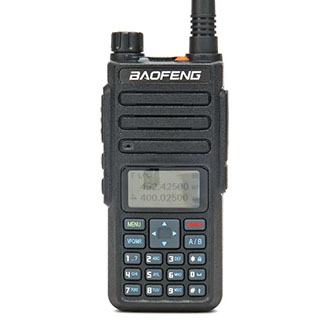

This is the Baofeng DM-1801 - the all black version of the DM760 which has very similar specifications.It is is a Dual Band, Dual Time Slot, Tier I & Tier II compliant DMR radio

It covers the now usual frequency ranges of VHF 136-174MHz &UHF 400-470MHz,T

Good battery life from the larger capacity 2200mAh Li-ion battery. Up to 18 hours work time and 48 hours of standby time.



DM-1801 is light weight and handy, perfect for long QSO’s.



Channel names, TX & RX frequencies, channel number, tones and etc. can all be programmed through the keypad, and you can also customize the top and side buttons for your favourite functions.



CSP software is easily available on-line and the radio comes with a USB programming cable.









£79

Price includes 1st class signed for delivery by Royal Mail

SPECIFICATIONS



Dual Band VHF 136-174MHz &UHF 400-470MHz



Storage channel: 64 groups ,1024



Frequency steps: 2.5/5/6.25/10/12.5/20/25KHz



Operating Voltage: DC 7.4V



Frequency Stability: ±1.5ppm



Operating Temperature: -20°c ~ 50°c



Operating Mode: Simplex or semi-duplex



Antenna Impedance: 50Ω



Battery Capacity: 2200mAh



Dimensions: 133 ×60 ×30mm(Antenna Not included)



Transmitting Output Power: 1W/5W



Modulation (wide band/ Narrow band): Analog: 16K F3E/11K F3E Digital: Tier 1&2



Maximum frequency Deviation (wide band/ Narrow band): ≤5KHz /≤2.5KHz



FSK allowable error rate: ≤3%



Spurious power: ≤7.5 W



Adjacent channel power: ≤-65dB ≤-60dB



Signal to noise radio: -45dB -40dB



CTCSS/DCS  Frequency Deviation: 0.7 ±0.1KHz/0.4± 0.1KHz



Modulation  sensitivity: 8-12mV



Transmitting Current: ≤1.5A
